A 14-Station Progressive Die, Still Forming Parts a Decade Later

The Hidden Risk: What Kills a Progressive Die at Year Three

Nobody buys a progressive die expecting it to fail at year three. They buy it expecting production. But year three — sometimes year two — is exactly when shops that under-engineered the die start showing up for a redesign conversation, because the original toolmaker has either gone quiet or is proposing a full rebuild at a price that stings worse than the first build.

The failure mode is almost always predictable in hindsight. A station geometry that looked acceptable at tryout develops edge-wear faster than expected under production tonnage. A forming radius that was fine on the sample run creates a stress riser at volume. Punch-to-die clearances that were ground to nominal on Day 1 open up after the first 200,000 cycles because the die block wasn't heat-treated to the right hardness profile. By the time scrap rate climbs above threshold, the root cause has been compounding for months.

For an industrial OEM running a high-cycle stamped component, a progressive die that needs a rebuild at year three isn't a minor inconvenience — it's a sourcing disruption, a production interruption, and a capital cost that wasn't in the plan. The real cost of a short-lived die isn't the rebuild invoice. It's the downtime, the expedited tooling lead time, and the capacity hit while the die is off the press.

Bristol's 14-station die for an industrial OEM avoided all of it. That die entered production, and it is still in production — ten-plus years later, running dual-direction forming at continuous production rates.

What Dual-Direction Forming Costs You When the Die Design Is Wrong

Dual-direction forming inside a progressive die is where engineering discipline separates toolmakers. Forming in two directions simultaneously — or in sequenced opposition — multiplies the lateral load on the strip carrier and introduces opposing reaction forces into the die block. If the geometry isn't precisely balanced and the tool steel selection isn't matched to the stress profile at each station, you get accelerated wear exactly where you can least afford it: at the forming stations themselves.

The wrong shop designs dual-direction forming as a series of individual station problems, each solved locally. What they miss is the cumulative strip dynamics — the way lateral forces from opposing stations interact through the carrier strip, how pilot registration degrades when the strip is under combined tension and lateral load, and how the die block absorbs or dissipates those forces over millions of cycles. A die that checks out perfectly at tryout and holds up for 50,000 parts can start producing out-of-tolerance forming geometry by 300,000 cycles if those dynamics were never properly addressed in the design.

The compounding effect is what makes dual-direction forming failures expensive. Once a forming station starts producing drift — even a few thousandths — every part downstream in the strip is affected. In a progressive die, you can't isolate one station's problem. The strip carries it forward. Scrap rates climb, operators start adjusting feeds to compensate, and the die is running in a degraded state that accelerates wear at every subsequent station. What started as a geometry problem becomes a die-life problem.

This is why the Bristol 14-station die was designed with the full forming load map modeled before any steel was cut. The dual-direction forming sequence was laid out to balance strip reaction forces across the station progression, pilot registration was designed with tolerances that account for long-run thermal and wear conditions, and the forming inserts were specified in tool steel grades chosen for that specific load profile — not whatever was convenient.

The Engineering Choices That Buy a Decade

A ten-year service life on a progressive die isn't luck. It's a collection of engineering decisions made at design time that either compound toward longevity or compound toward early failure. The decisions that mattered most on the 14-station die fall into four categories: material selection, punch-to-die geometry, heat treatment, and sharpening cadence.

Tool Steel Selection for the Load Profile

Not every station in a progressive die sees the same stress. Piercing punches live in a different failure universe than forming inserts — high impact, low sustained load versus lower peak impact but high lateral and compressive fatigue. Specifying the same steel across all stations is a shortcut that costs you at whichever station is most stress-mismatched. Bristol specifies tool steel grade by station function: D2 and M2 grades for cutting and piercing elements where wear resistance is the primary performance driver, with carbide at high-wear contact points where justified by cycle volume.

For the forming stations in a dual-direction sequence, the material selection also has to account for the directional nature of the load. A forming insert seeing lateral thrust needs toughness alongside hardness — a steel that absorbs shock without microcracking. Getting that balance wrong means a forming insert that is technically hard enough but brittle in the cross-load direction, which produces edge chipping that looks like wear but propagates faster.

Geometry That Tolerates Long-Run Wear

The best-ground die on Day 1 will be a different die at 500,000 cycles. Punch-to-die clearance opens as wear occurs. Forming radii change as surface material is removed through sharpening. Die designs that are only correct at initial grind will drift out of specification faster than designs that were engineered with a wear budget built in. Bristol designs clearances and geometries that remain within production tolerance across the expected sharpening lifecycle — not just at nominal condition. That means the die is still making a good part after its fifth sharpening, not just its first.

Heat Treatment Verification

Specifying the right hardness isn't sufficient if the hardness achieved in production doesn't match the specification. Retained austenite, quench distortion, and inconsistent case depth are all failure modes that don't show up at incoming inspection but manifest at production volumes. Bristol verifies heat treatment outcome on critical die components before assembly — hardness at multiple locations, geometry check post-treat to confirm distortion is within regrind allowance. A die component that came out of heat treatment slightly soft or slightly distorted goes back, not into the assembly.

Sharpening Cadence as a Maintenance Protocol, Not a Reaction

Progressive die sharpening on a reactive basis — when parts start going bad — is a predictable path to accelerated wear. By the time a worn cutting edge is producing detectable scrap, the punch has already been operating with degraded geometry long enough to cause secondary wear on adjacent components. A scheduled sharpening cadence, derived from the die's design and the production material, keeps edge geometry within the designed wear budget and extends the interval between major refurbishments. Bristol documents the sharpening schedule with each die it ships, calibrated to the material, gauge, and press tonnage the die will see in production.

Why Tryout on the Bliss 200-Ton Matters Before the Die Ships

A progressive die that has never been run at production tonnage before it ships is a hypothesis, not a verified tool. Die tryout is where the engineering assumptions get tested against actual strip behavior, actual punch deflection under load, and actual part geometry against the print. Without tryout, the customer's press is doing the tryout — on their production schedule, with their material, with their operator running the first hits.

Bristol runs die tryout on its own Bliss 200-Ton straight-side press before any die ships. The straight-side configuration is significant: it produces the same slide guidance and press-bed parallelism that a straight-side production press generates, so the tryout tonnage and load distribution is representative of what the die will see in production. A die tryout on a gap-frame or OBI press produces different off-center load results than a straight-side press will in production, which means problems that present at tryout on a straight-side press don't get discovered until the customer is running production.

For the 14-station die, Bristol's in-house tryout was the checkpoint where dual-direction forming station timing and strip progression were validated against the actual part geometry. Station timing adjustments that would have shown up as part defects at the customer's facility were resolved on Bristol's floor. The die that shipped was a die that had already proven it could hold the part geometry under production load — not a die that had passed a dimensional check on the bench.

That distinction matters commercially. A die that ships unrun pushes discovery of every design assumption onto the customer's launch schedule. Every modification needed during customer tryout adds cost, extends launch, and creates a die that has been modified post-build — a history that follows the tool through its service life. Bristol's Bliss 200-Ton tryout closes that loop before the die leaves Bristol, IN.

Service-Life Math: What a Decade of Uptime Means Against a $25K–$200K Die Budget

Progressive die investment sits in the $25,000–$200,000 range at Bristol, depending on station count, material requirements, and forming complexity. A 14-station die with dual-direction forming lands toward the upper middle of that range. The natural question for any VP of Manufacturing or sourcing director is how that number amortizes across the die's production life.

A die that runs for three years before requiring a full rebuild — call that $60,000 for the original build and $40,000 for the rebuild — has consumed $100,000 over three years of production, plus whatever downtime cost was absorbed during the rebuild lead time. A ten-year die on the same $60,000 original investment is a fundamentally different capital equation, even accounting for scheduled sharpening and maintenance costs over that period. The per-unit tooling cost on a ten-year die is a fraction of the per-unit tooling cost on a three-year die, and the production disruption cost is near zero if scheduled maintenance is being performed on cadence.

The Bristol 14-station die has been in continuous production for over ten years. That means an industrial OEM has been running a dual-direction formed part for a decade without a production tooling crisis. No emergency rebuild. No sourcing disruption. No unplanned downtime attributed to die failure. At production volumes typical of an industrial OEM, the die has almost certainly produced several million parts — and every one of those parts was made on the same tool that shipped from Bristol.

The engineering cost of building a die correctly the first time is not dramatically higher than building it to a budget that will require a rebuild. The difference in cost between a die built with the right tool steel grades, verified heat treatment, and a documented sharpening protocol versus a die built to minimize initial price is measured in tens of thousands of dollars at most. The difference in outcome is measured in years of production.

There is also a second-order cost that rarely appears in the initial sourcing conversation: the cost of requalifying a die after a rebuild. Every time a die comes back from a major refurbishment, it technically needs to be revalidated against the part print. For OEMs with formal production part approval processes, that means first article inspection, dimensional validation, and sign-off before the die goes back into production. A ten-year die that holds its geometry through the designed sharpening cadence avoids that requalification cycle almost entirely.

Bristol Is the Source for Progressive Stamping Dies That Stay in Production

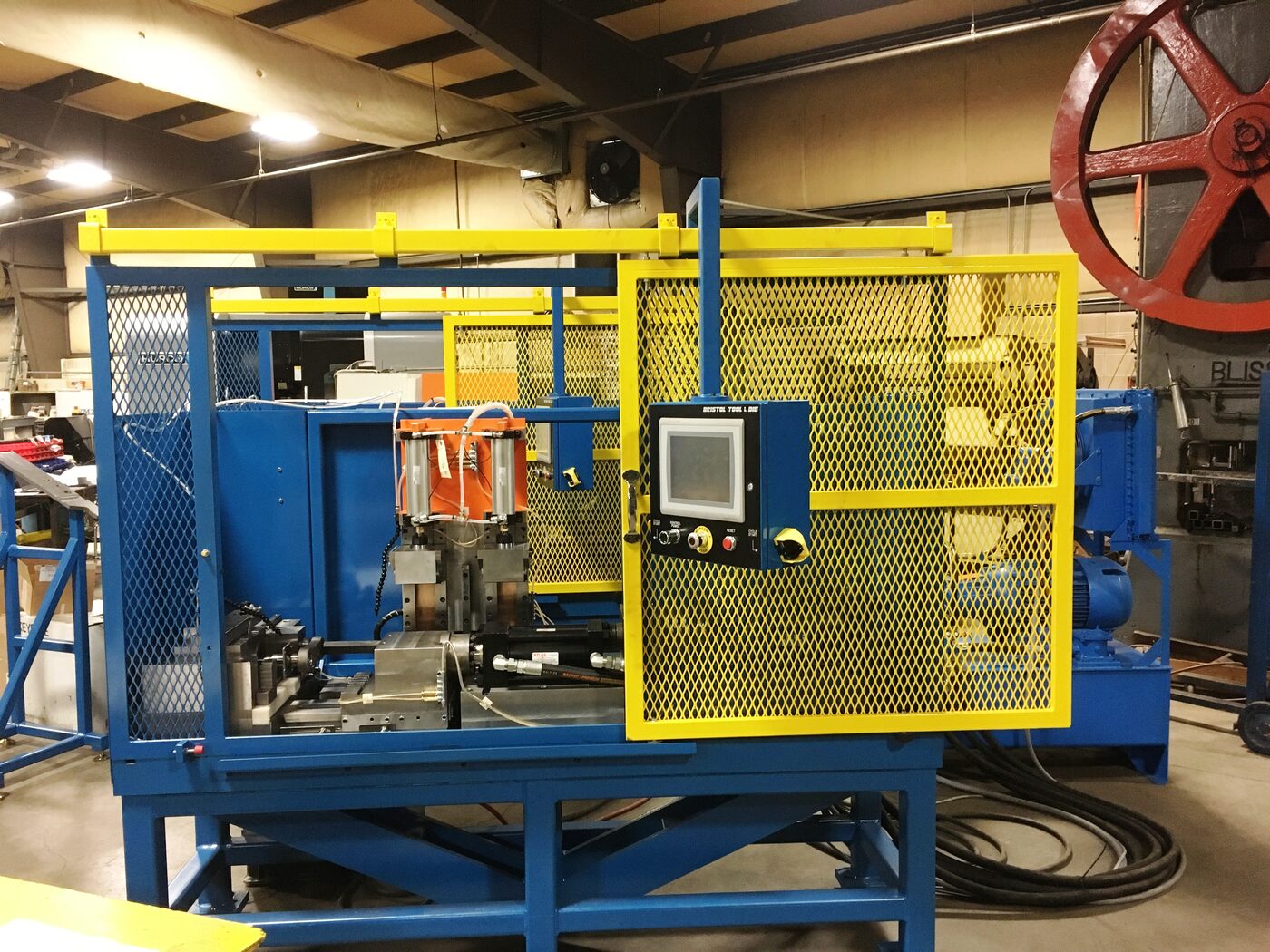

Bristol Tool & Die – Automation designs and builds progressive stamping dies for industrial OEMs that need tooling to perform at production volumes for the full intended service life — not for tooling that meets a price point at the expense of longevity. The 14-station dual-direction forming die is one data point in a broader service record that includes dies and automation systems still running after a decade of production across multiple industries.

The engineering team at Bristol brings more than 170 combined years of tooling and automation experience to every die program. That depth is not industry-typical for a shop at Bristol's size. It means the engineer who specifies tool steel grades, designs forming geometry, and signs off on heat treatment verification is drawing on the kind of production-floor failure experience that only comes from having seen what happens when those decisions are made wrong — and having built the discipline to make them correctly.

Bristol's stamping capabilities cover the full range of progressive die operations: cutoff, coining, drawing, embossing, forming, lancing, notching, piercing, punching, trimming, and blanking. Dual-direction forming is not an edge case — it is a standard part of the design toolkit. Every die built at Bristol is tried out on the Bliss 200-Ton straight-side press before shipment. Quick-turn die repair and refurbishment services are available for existing tooling, including component replacement, diagnostics, sharpening, hard welding, and full refurbishment.

If you are sourcing a progressive die for a high-cycle industrial application — or evaluating whether your current tooling is being maintained in a way that will reach its designed service life — Bristol is the conversation worth having. Reach the team at RFQ form or 574-848-5354.
