How Stamping Die Service Life Actually Compounds Cost

When a $25K Savings Hides a $400K Downstream Cost

Two vendors bid a 14-station progressive die. Vendor A comes in at $175,000. Vendor B quotes $150,000. The sourcing team books the save and the $25,000 gap looks like a win on the capital budget line.

What the budget review does not capture: Vendor B's die runs reliably for 36 months before it needs a major rework event. Vendor A's die, built to tighter material grades and geometry tolerances, runs for 10+ years with nothing beyond routine sharpening. The $25,000 savings at PO generates a cost event at year three — and potentially every two to three years after that — that looks nothing like a die purchase. It looks like unplanned production downtime.

A single die rebuild on a running progressive tool — teardown, component replacement, hard welding, re-hardening where required, dimensional recheck, and tryout time — typically runs $40,000–$80,000 depending on station count. Add the production downtime: for a line running at volume, a 10-day rebuild window can cost $60,000–$150,000 in lost throughput, expedite premiums, and schedule disruption at the OEM. Do that twice over a decade and the $25,000 savings has become a $200,000–$400,000 liability — before factoring in scrap rate creep in the months before failure becomes obvious.

The die that costs more at PO is frequently the cheaper die over a 10-year horizon. Most buyers never run the math because the two costs hit different budget lines, different fiscal years, and different team owners.

Service-Life Math: What the Numbers Actually Look Like

A well-engineered progressive die for a medium-complexity stamping — say, a 10–14 station tool running a structural bracket or formed suspension component — should achieve 500,000 to 1,000,000 cycles between sharpening events under normal production conditions. A sharpening is a planned, low-cost maintenance event: the die comes out for a shift, punch faces and die sections are reground, and the tool returns to production. Done on a disciplined cadence, sharpening extends tool life without accumulating dimensional drift.

The failure mode that destroys the economics is the unplanned event. A die that was under-specced on material grade — say, A2 tool steel where D2 or M2 was called for on high-wear stations — will show accelerated edge breakdown in the second or third production year. The sharpening cadence compresses. Stock removal increases per event. Eventually you are removing material faster than the geometry can tolerate, and the affected components need full replacement rather than grinding. That is the event that pulls the die off the line unplanned, and unplanned always costs more than planned.

Concrete reference points for a 14-station progressive die engineered to a full-decade service life:

• Sharpening cadence: every 400,000–600,000 cycles on high-wear stations; every 800,000–1,200,000 cycles on forming and coining stations with proper clearances
• Total planned downtime per sharpening: typically 4–8 hours if the die is designed for rapid component access
• Major rebuild threshold: should not be reached before 5–7 million cycles on a properly engineered tool; under-specced tooling often hits this at 2–3 million cycles
• Scrap rate floor: a die in spec should hold ±0.005″ or tighter on critical features throughout its service life; wear-related drift shows up first in scrap rate before it becomes a dimensional rejection

At 1.5 million cycles per year, the difference between a die that needs a major rework at cycle 2.5 million versus one that runs clean to cycle 10 million is roughly four major events avoided. At $50,000–$80,000 per event including downtime, that is $200,000–$320,000 of variance hanging off the initial sourcing decision.

The Four Engineering Choices That Determine Die Life

Die longevity is not an accident and it is not luck. It is the result of four specific decisions made in engineering — decisions that are invisible in a quote sheet but show up unmistakably in production year two through ten.

1. Material Grade Selection by Station

Not every station in a progressive die sees the same stress profile. Cutoff and pierce stations — particularly those cutting high-strength steel or stainless — generate localized impact loads that destroy softer tool steels in short cycles. A die shop that specs D2 or carbide inserts only on the stations that demand it, and uses appropriate lower-cost steels on forming and coining stations with different wear profiles, is making an engineering decision. A shop that standardizes on a single material grade across all stations to simplify BOM management is making a cost decision — and pushing the delta into the customer's production schedule.

2. Geometry Tolerance on Punch-to-Die Clearance

Piercing and blanking clearance — typically 5–12% of material thickness per side depending on material and application — is the single biggest driver of edge quality, punch wear, and die section fatigue. Clearance held to ±0.0005″ via wire EDM is a fundamentally different tool than clearance held to ±0.002″ via conventional grinding. The tighter tool produces a cleaner shear plane, generates less burr, and exerts lower radial load on the punch. Measured over millions of cycles, that lower radial load is the difference between a punch that lasts 800,000 cycles and one that cracks at 200,000.

Bristol's wire EDM capability — two Charmilles Robofil machines holding ±0.0001″ — is not a marketing spec. It is the mechanical reason a punch-to-die clearance actually stays where it was designed to be, from the first cycle through the millionth.

3. Hardening Strategy and Post-Grind Stress Relief

Heat treatment is where die longevity gets lost quietly. A component hardened to the right surface hardness (typically 60–64 HRC for D2 cutting sections) but with residual machining stress unaddressed will develop micro-cracking under cyclic load at a fraction of its theoretical service life. The correct sequence — rough machine, stress relieve, finish grind, heat treat, final grind — adds time to component fabrication. The shortcuts are invisible until a critical insert starts chipping at cycle 500,000.

4. Tryout Discipline Before the Die Ships

Tryout is where engineering decisions become production reality. A die that leaves the shop without a full run on a press matched to production tonnage is a die that has never been validated. Setup-induced defects — spring issues in forming stations, timing errors in sequential operations, feed progression that drifts under sustained cycling — are invisible on slow-stroke inspection. They only appear under production-speed, production-load conditions: as scrap, as downtime, and as the call no sourcing director wants to make to an OEM program manager.

Why In-Shop Tryout on the Bliss 200-Ton Changes the Risk Profile

Bristol runs every progressive die on a Bliss 200-Ton straight-side tryout press before it ships. That is not a QC checkpoint — it is a full production simulation. Straight-side presses load the die symmetrically, which is critical for multi-station progressive tooling where off-center loading induces timing errors that only manifest under full-speed cycling.

A forming station that generates springback outside tolerance at cycle speed will produce dimensionally compliant parts on day one and gradually drift out-of-spec as the operator adjusts — until compensation runs out and the program goes on hold. A pierce station with marginal punch-to-guide clearance strips slugs cleanly at 30 strokes per minute and misfires at 60. These failure modes are repeatable, predictable, and entirely catchable during tryout if the tryout is done correctly.

The alternative — shipping with a bench-qualification sign-off and a commitment to "support the launch" — moves the debugging cost to the customer's facility and schedule. That cost never shows up on the die vendor's invoice. It shows up on the OEM's production variance report.

Five Questions to Ask Any Die Vendor Before Signing

The sourcing conversation for a progressive die should include at least these five questions. The answers — or the evasions — tell you more about long-term cost than the quote sheet does.

1. What tool steel grade are you specifying for high-wear pierce and cutoff stations, and why? A vendor who cannot answer specifically, or who uses the same grade across all stations, has not done the stress analysis.
2. What is your wire EDM capability, and what punch-to-die clearance tolerance are you holding? ±0.0005″ and ±0.002″ are not the same die. Ask for the number.
3. Where and on what press does tryout happen, and what is your pass/fail criterion? "We do tryout in-house" is not the same as "we run full-speed cycling on a straight-side press matched to production tonnage and hold parts to blueprint until the run is stable."
4. What is your typical sharpening cadence recommendation for this application, and what does a sharpening cost? A vendor who has built this die before has the data. A vendor who has not will give you a guess.
5. What does a major rework on this tool look like at year five, and what is your quick-turn turnaround capability? Bristol's quick-turn die repair services — component replacement, diagnostics, sharpening, hard welding, refurbishment — are available for any tool, including tools not originally built by Bristol. The question reveals whether the vendor is designing for repairability or treating the rebuild as a revenue event.

Bristol's Track Record Is the Argument

The 14-station progressive die with dual-direction forming that Bristol built for an industrial OEM has been in continuous production for 10+ years. That is not a spec sheet claim — it is a running tool. Dual-direction forming is among the mechanically demanding configurations in progressive die design: the force reversals between stations create cyclic loading conditions that accelerate wear on every component that sees them. A die that handles dual-direction forming and runs a decade without a major rework event was engineered correctly from station one.

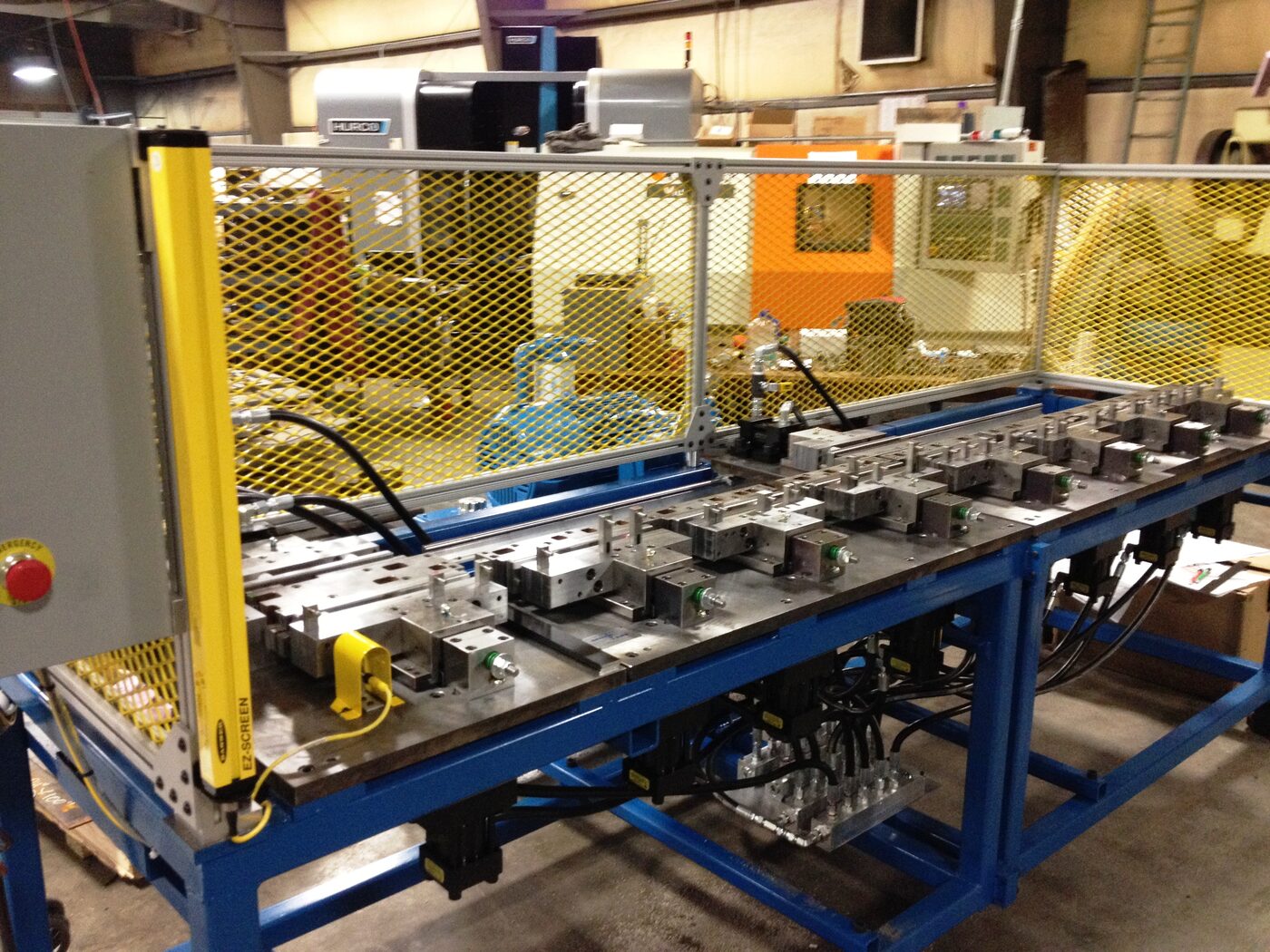

Bristol builds progressive dies from $25,000 to $200,000 depending on station count, material, and forming complexity. The capability set covers one-hit, progressive, transfer, and line dies, along with two-out configurations for scrap reduction on high-volume applications — with operations including cutoff, coining, drawing, embossing, forming, lancing, notching, piercing, punching, trimming, and blanking. Every tool exits the shop validated on the Bliss 200-Ton.

If the sourcing conversation has not gotten past PO price, the team is optimizing the wrong variable. The cost per cycle over the service life — factoring sharpening cadence, downtime risk, and rebuild frequency — is the number that determines whether the sourcing decision was actually good. Bristol's engineering bench (three engineers, 100+ combined years; two senior designers, 70+ combined years) exists to make that number as low as possible over the full production life of the tool.

Contact Bristol at RFQ form or 574-848-5354 to discuss your next progressive die program.
